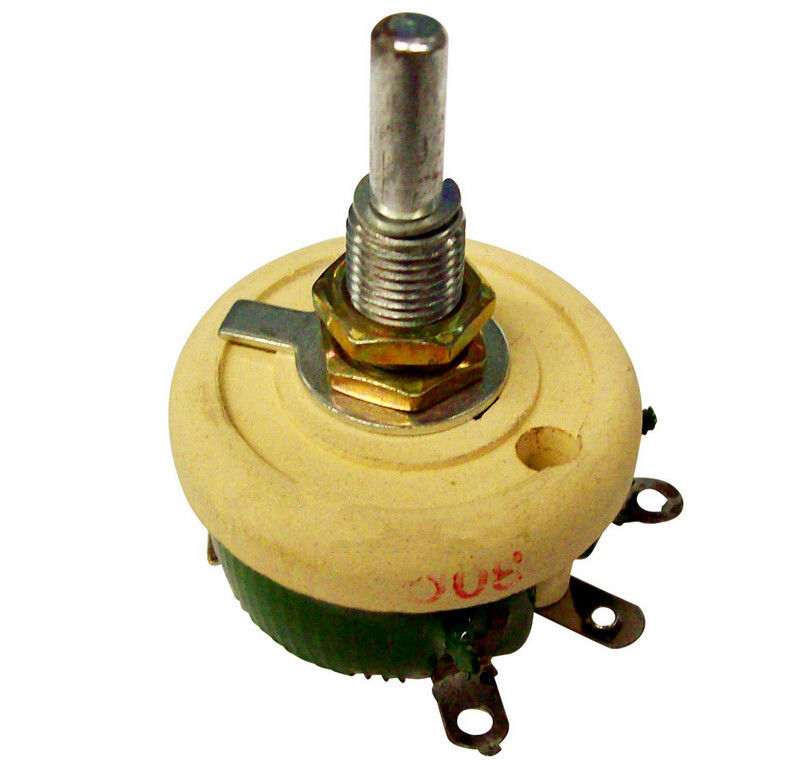

BC1 25W-50W Ceramic Wirewound Variable Resistor 1-10kΩ ±10% Tolerance
  • BC1 25W-50W Ceramic Wirewound Variable Resistor 1-10kΩ ±10% Tolerance
  • BC1 25W-50W Ceramic Wirewound Variable Resistor 1-10kΩ ±10% Tolerance
  • BC1 25W-50W Ceramic Wirewound Variable Resistor 1-10kΩ ±10% Tolerance
  • BC1 25W-50W Ceramic Wirewound Variable Resistor 1-10kΩ ±10% Tolerance
  • BC1 25W-50W Ceramic Wirewound Variable Resistor 1-10kΩ ±10% Tolerance
  • BC1 25W-50W Ceramic Wirewound Variable Resistor 1-10kΩ ±10% Tolerance
BC1 25W-50W Ceramic Wirewound Variable Resistor 1-10kΩ ±10% Tolerance

BC1 25W-50W Ceramic Wirewound Variable Resistor 1-10kΩ ±10% Tolerance

Τόπος καταγωγής Σιτσουάν, Κίνα
Μάρκα China
Αριθμό μοντέλου BCI
Λεπτομέρειες προϊόντων
Σειρά αντίστασης:
1Ω~5kΩ
Ανοχή αντίστασης:
± 10%
Αντίσταση τερματικού:
≤0,2% ή 1Ω
Μόνωση:
≥100mΩ (500VDC)
Μέγιστη τάση:
1000V
Τάση μόνωσης:
2500V
Κλίμακα θερμοκρασίας:
-55°C~350°C
Μέγιστη θερμοκρασία θέρμανσης:
350℃
Συρόμενο δρομολόγιο:
280 ± 5 ° (25-50W), 300 ± 5 ° (≥100W)
Κύκλοι περιστροφής:
5000 εβδομάδες
Αντίσταση δόνησης:
10 ~ 200Hz, 40m/s2, 3h △ r≤ ± 3%r
Κύκλο θερμοκρασίας:
-55 ° έως 85 °, 30 λεπτά το καθένα
Υγρασία:
40 ± 2 ° C, RH: 95%-98%, 48h △ r≤ ± 3%r
Αντίσταση φορτίου:
R≤1kΩ, 5000 κύκλοι, △ r≤ ± 5%r
Αντοχή σε σοκ:
60 ~ 100 φορές/λεπτό, 150m/s2, 4000 φορές
Επισημαίνω:

ceramic wirewound variable resistor

,

25W-50W variable resistor

,

10kΩ variable resistor with warranty

Όροι πληρωμής & ναυτιλίας
Ποσότητα παραγγελίας min
100
Περιγραφή προϊόντων
BC1 Series High Power Wirewound Potentiometer Rotary Rheostat
BC1 25W-50W Ceramic Wirewound Variable Resistor 1-10kΩ ±10% Tolerance 0 BC1 25W-50W Ceramic Wirewound Variable Resistor 1-10kΩ ±10% Tolerance 1 BC1 25W-50W Ceramic Wirewound Variable Resistor 1-10kΩ ±10% Tolerance 2 BC1 25W-50W Ceramic Wirewound Variable Resistor 1-10kΩ ±10% Tolerance 3

The BC-1 wire wound resistor features high resolution capability with a wide resistance range. Designed for durability, it offers excellent heat resistance, humidity resistance, and wear resistance characteristics. Suitable for voltage and current adjustment in power equipment and circuits not exceeding 380V AC or 220V DC.

Technical Specifications
  • Maximum working voltage: 1000V (insulation voltage 2500V)
  • Temperature rise: 25-100W models ≤300K; ≥150W models ≤350K
  • Sliding travel: 25-50W models: 280±5°; ≥100W models: 300±5°
  • Linear deviation: Not greater than ±10% across entire travel
  • Rotation durability: 5,000 cycles with not less than 90% travel
  • High temperature test: 40°C for 6 weeks, insulation resistance <1.5mΩ
Product Features

The BC1 series rotor-arm sliding wire porcelain disk variants are designed for voltage and current adjustment in industrial electrical equipment up to 500 volts. The resistor uses high-quality resistance wire wound on a ceramic skeleton, coated with high-temperature enamel except for the sliding contact surface. Features metal protective housing with handwheel operation.

Technical Parameters
ELECTRICAL CHARACTERISTICS ENVIRONMENT CHARACTERISTICS
Standard resistance range 1Ω~5KΩ Temperature range -55℃~350℃
Resistance tolerance ±10% Vibration 10~200HZ,40m/S², 3h△R≤±3%R
Terminal resistance ≤0.2% or 1Ω Temperature cycling -55°C to 85°C, △R<+3%R
Insulation resistance ≥100mΩ(500Vdc) Humidity 40±2°C, RH:95%-98%
Maximum temperature 350℃ Load durability 5000 cycles (R≤1KΩ)
Mechanical travel 300°±10° Shock resistance 60~100 times/min, 150m/s²
Applications

Ideal for telecommunications, railway systems, electrical equipment, medical devices, industrial machinery, and low-frequency AC/DC electrical equipment requiring voltage/current regulation or adjustable load resistance.

BC1 25W-50W Ceramic Wirewound Variable Resistor 1-10kΩ ±10% Tolerance 4 BC1 25W-50W Ceramic Wirewound Variable Resistor 1-10kΩ ±10% Tolerance 5
Frequently Asked Questions
Q: How can I place an order?
A: Contact us by email with your order details or place order online.
Q: What payment methods do you accept?
A: We accept T/T, PayPal, and Western Union after PI confirmation.
Q: What is your order process?
A: We discuss details, issue PI, receive payment (full/deposit), produce (7-15 days), arrange shipment after balance payment.
Q: What is your policy for defective products?
A: We replace defective items or credit your account, typically in next shipment.
Q: How do you ensure product quality?
A: We conduct spot inspections during production and finished product inspections before shipment.
