multi turn potentiometer
Πολλαπλός Δαχτυλικός Ποντικομετρητής 6.35mm 3590S 534 H-22-6A Ψηφιακός Δαχτυλικός
H-22-6A Digital knob multi-ring potentiometer knob 6.35mm metal knob can be equipped 3590S 534 product name: H-22-6A Digital knob multi-ring potentiometer knob 6.35mm metal knob can be equipped 3590S 534 product description: Outer diameter: 22MM Height: 24MM Shaft hole diameter: 6.35MM Center to center distance of positioning: 9 Dial scale: 0-90; Number of small window turns: 0-14 Fixed form: fixed with small screws on the side Equipped with a switch locking device, the
3540S-2-104L 10 Potentiometer στροφής 3540S 0,5W 5% 1K 5K 10K 47K 100K Precision Multi Turn Wirewound Potentiometer
10K ohms Multi-turn potentiometer wirewound potentiometer 3540 Product Description Specification Electrical Characteristics Range of nominal resistance 100~100K Resistance tolerance ±5% Terminal resistance ≤2%R or 5 Peak noise ≤100 Linear accuracy ±0.25% Electrical angle 3600°±5° Insulation resistance ≥ 200M Withstand voltage 500V (DC or AC peak value) Environment Characteristics Rated power 2W (70°C) Temperature range 55°C~ 125°C TCR ±100x10-6/°C Temperature shock R≤±3%R

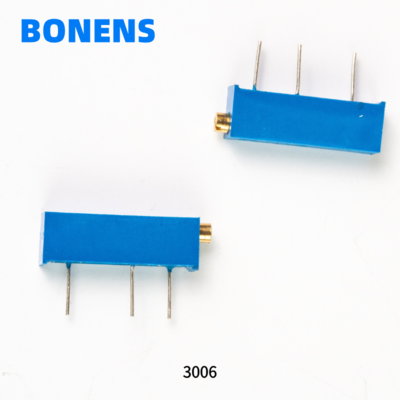

Μεταλλικό γυαλί 7mm Trimmer Potentiometers 10k 3006P Πολλαπλές στροφές Ρυθμιστή ακρίβεια
3006P 7mm Adjustable Precision Multi turn Metal Glass Glass trimmer potentiometer 10k product name: 3006P adjustable precision multi-ring metal glass glaze preadjustable potentiometer product description: The 3006 series multi turn metal glass glaze fine adjustment potentiometer is composed of a glass glaze resistor and a rotating or sliding system. The knob clockwise adjusts the resistance value, allowing for flexible adjustment of voltage and current. The 3006P potentiomete
WXD4-23 3w Πολλαπλές στροφές δυνατομετρητής 5K6 6K8 10K 22K Ωμ
product name WXD4-23 100ohm Multi-turns 3W wirewound 101 potentiometer b100k 3W 1K 2K2 3K3 4K7 5K6 10K 15K 22K 47K Spot resistance value: 100 Ω 220 Ω 330 Ω 470 Ω 560 Ω 680 Ω 1K 1K5 2K2 3.3K 4.7K 5.6K 6.8K 10K 100K 22K 33K 47K 15K product description: Model: wxd4-23-3w Attribute: Multi turn precision potentiometer Packaging: 1 box/5 pieces 1, Environmental conditions for use: Environmental temperature: -50~+100 ℃; Relative temperature: 98% at a temperature of+40 ℃; Atmospheric
3386 Σειρά Ενιαίο δυνατομετρητή στροφής 10k Ωμ Αντιστέκεται στην τάση 500V
product name: 3386 series single turn metal glass glaze preset Potentiometer product description: The 3386 Potentiometer is one of the glass glazed precision single loop adjustable Potentiometer. The color of the product is generally blue, and occasionally it is specially customized. 3386 Potentiometer are divided into Potentiometer with handles and Potentiometer without handles. The handles are 8mm, 3mm and 5mm long. The 3386 Potentiometer is widely used in communication
3540 Πολλαπλή στροφή Wirewound Πληροφοριακό δυνατομετρητή 3540S-1-103L 10K Ωμ 2w 10 στροφή
3540 Multi-turn Wirewound Precision Potentiometer 3540S-1-103L 10K ohm 2w 10 turn product name: 3540 50k ohms Multi-turn Wirewound Precision Potentiometer WXD3540 2w 10 turn product description: Part Number Resistance (Ω) Resolution 3540S-1-201L 200 .042 3540S-1-501L 500 .031 3540S-1-102L 1,000 .027 3540S-1-202L 2,000 .021 3540S-1-502L 5,000 .021 3540S-1-103L 10,000 .019 3540S-1-203L 20,000 .014 3540S-1-503L 50,000 .011 3540S-1-104L 100,000 .008 Product Features: 1.Bushing
WXD3-12 Precision Multi Turn Wirewound Potentiometer Sliding Rheostat 5 Turn Ρυθμίσιμος αντίσταση
WXD3-12 Precision Multi turn wirewound Potentiometer Sliding Rheostat 5 turn Adjustable Resistor product name: WXD3-12 Precision Multi turn wirewound Potentiometer Sliding Rheostat 5 turn Adjustable Resistor product description: The WXD3-12 potentiometer is a variable resistor that is usually composed of a resistor and rotation or sliding system, that is, the movement contacts on the resistor to obtain some voltage output. The function of the potential meter is to regulate
δυναμικό περιστροφής πολλαπλών στροφών WXD4-23 3W 1K 2K2 4K7 10K 22K 47K 3K3 5K6 100K για βιομηχανικά
product name WXD4-23 100ohm Multi-turns 3W wirewound 101 potentiometer b100k 3W 1K 2K2 3K3 4K7 5K6 10K 15K 22K 47K Spot resistance value: 100 Ω 220 Ω 330 Ω 470 Ω 560 Ω 680 Ω 1K 1K5 2K2 3.3K 4.7K 5.6K 6.8K 10K 100K 22K 33K 47K 15K product description: Model: wxd4-23-3w Attribute: Multi turn precision potentiometer Packaging: 1 box/5 pieces 1, Environmental conditions for use: Environmental temperature: -50~+100 ℃; Relative temperature: 98% at a temperature of+40 ℃; Atmospheric
3W Πολλαπλές στροφές Δυνατόμετρος περιστροφής 1K 2K2 3K3 4K7 5K6 10K 15K 22K 47K 10 στροφές BONENS WXD4-23
Product Description Multi-turn wire potentiometer WXD4-23 3W 1K 2K2 3K3 4K7 5K6 10K 15K 22K 47K Part number WXD4-23 3W Resistance 1K 2K2 3K3 4K7 5K6 10K 15K 22K 47K Multi-turn wirewound potentiometer Shaft diameter: 6mm Shaft length: 25mm Outer diameter: 40mm Power: 3W Resistance error: +-5% Linear accuracy C: +-0.3% Number of turns: 10 laps Our Services A: Your inquiry related to our products or prices will be replied in 24 hours. B: Protection of your sales area, ideas of
